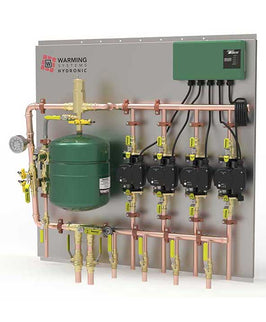

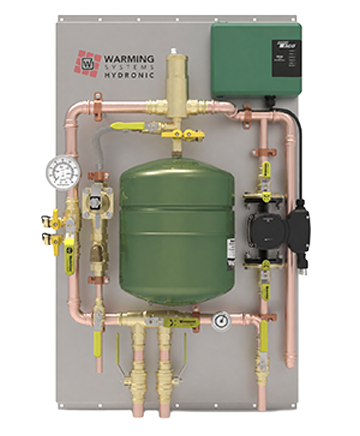

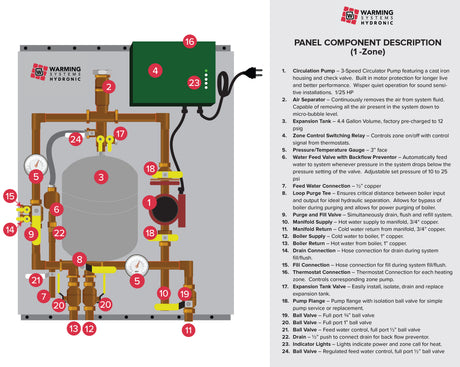

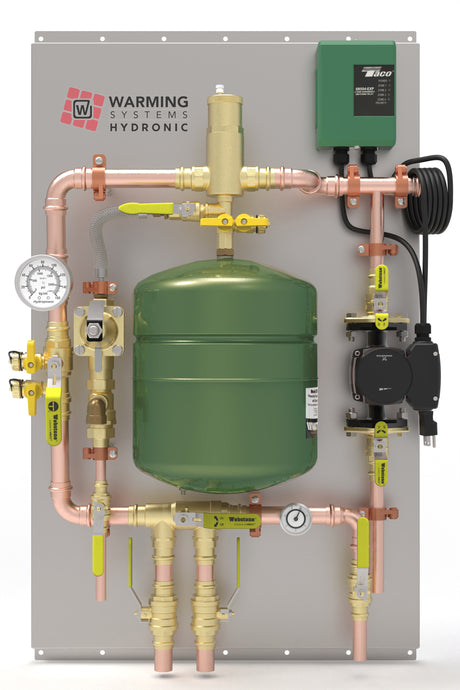

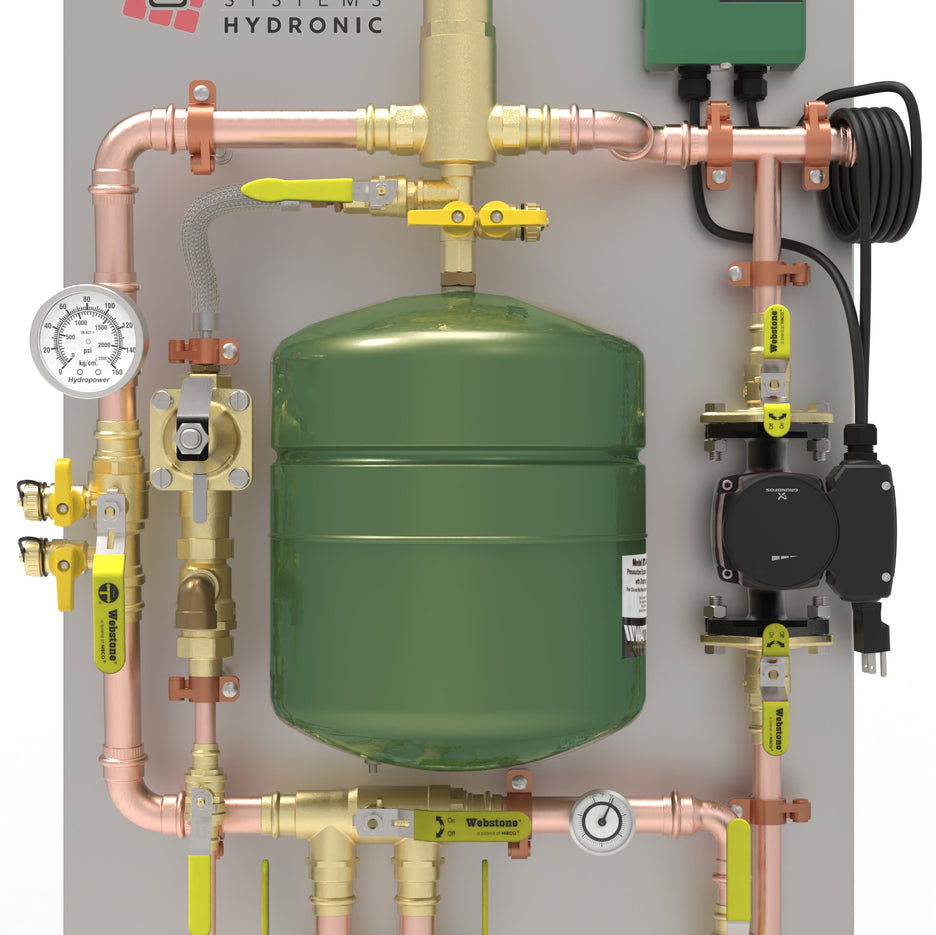

Save time and money with this pre-assembled hydronic radiant heating panel.  Includes all the necessary components, optimal layout for simple easy connections to the boiler and manifolds.  Includes make-up water supply, pumps, zone controller, expansion tank, etc.  The design is simple to fill or flush with the ability to isolate the boiler while flushing.  Choose between 1 – 4 Zone panels from above. BENEFITS – Save time and money with this pre-assembled hydronic heating panel.  Professionally manufactured with standard name brand components for easy future service. Simplifies installation, attractive layout design, room for expansion.   Easy to Flush/Fill system and boiler.  Simply connect thermostats, boiler connections, supply and return manifolds. DESCRIPTION – Control 1-4 Hydronic Heating Zones.  Includes all necessary components required for hydronic heating system.  This panel should be used with a boiler that has an internal circulation pump or an additional circulation pump needs to be installed.  Boiler connections are 1” Copper and Manifold Supply and Return connections are ¾” Copper.  Included supply water with pressure regulator and backflow preventor to ensure system remains at desired pressure.  Convenient design of supply/return/boiler connections locations.  Can be used with either water or Glycol mixture. QUALITY and SUPPORT– Warming Systems is Made in the USA.  We are located and manufacture the Hydronic heating panels in our factory in Spring Grove, IL (near Chicago).  We use only the highest quality products.  We stand behind our design and component manufacturers’ warranties.  We are experts in floor Heating and offer Engineering Support for any questions you might have.   PANEL COMPONENT SPECIFICATIONS: PUMPS – Grundfos #UPS15-58FC, 3-Speed Circulator Pump, 1/25 HP, 115 volt.   The three speed motor technology lowers noise and power consumption and has a universal design for easy replacement.      Flow range: 0-17 GPM Head Range: 0-19 Ft   ZONE CONTROLLER –  The Taco Switching Relay controls the zone pumps when the thermostat calls for heat. Simply connect the thermostats to the corresponding zone to control.  There are external diagnostic lights to show power and what zone pump is heating.  The controller requires a 115 volt outlet. EXPANSION TANK - 4.4 Gallon Expansion Tank, Pre-charged at 12 psi.   AIR SEPARATOR - The air separator is used to continuously remove the air contained in the hydronic system.  The air discharge capacity of this devise is very high.  It is capable of removing automatically all the air present in the system down to the micro-bubble level.     PURGE & FILL VALVE - T-pattern flow path quickly and easily allows the system to drain and refill.

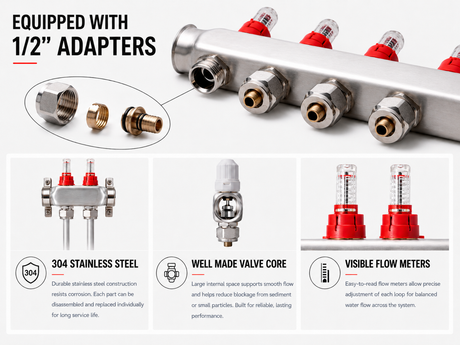

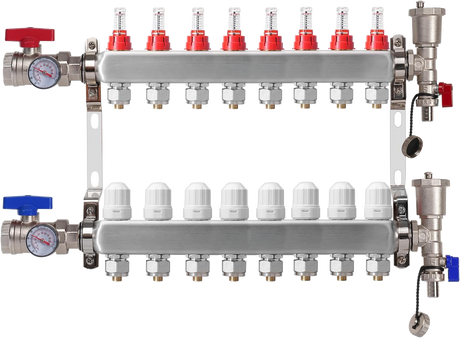

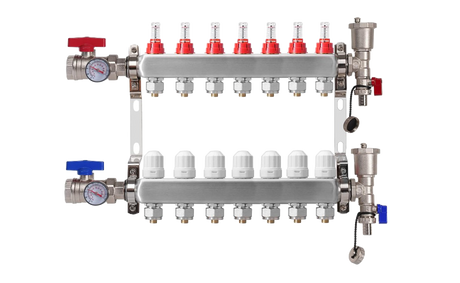

Stainless manifold is to be used in closed loop hydronic heating, cooling and snow melting systems. These preassembled 1-1/4" diameter stainless supply and return manifolds come attached to two brackets for compact remote mounting. This stainless manifold provides shut off and balancing valves with flow meters for each circuit. Each flow meter/balancing valve allows graduated flow setting. The air bleeder and purge valves are connected and factory tested. Equipped with 1/2" Pex adaptors. Features: Flexible, modular and singular design system Easy-to-assemble construction Precise flow control and balancing Fitting for both PEX and Multilayer Pipe Control for the dominant heating systems like hydronic floor heating, fan coil heating or baseboard heating. No Sealant or Teflon required
