Heating Systems
Professionally Assembled. Ready to Install.
See how Warming Systems pre-assembled hydronic panels bring essential system components together in one clean, professionally built solution. Each panel is designed to help streamline installation, reduce on-site assembly, and deliver dependable radiant heating performance.

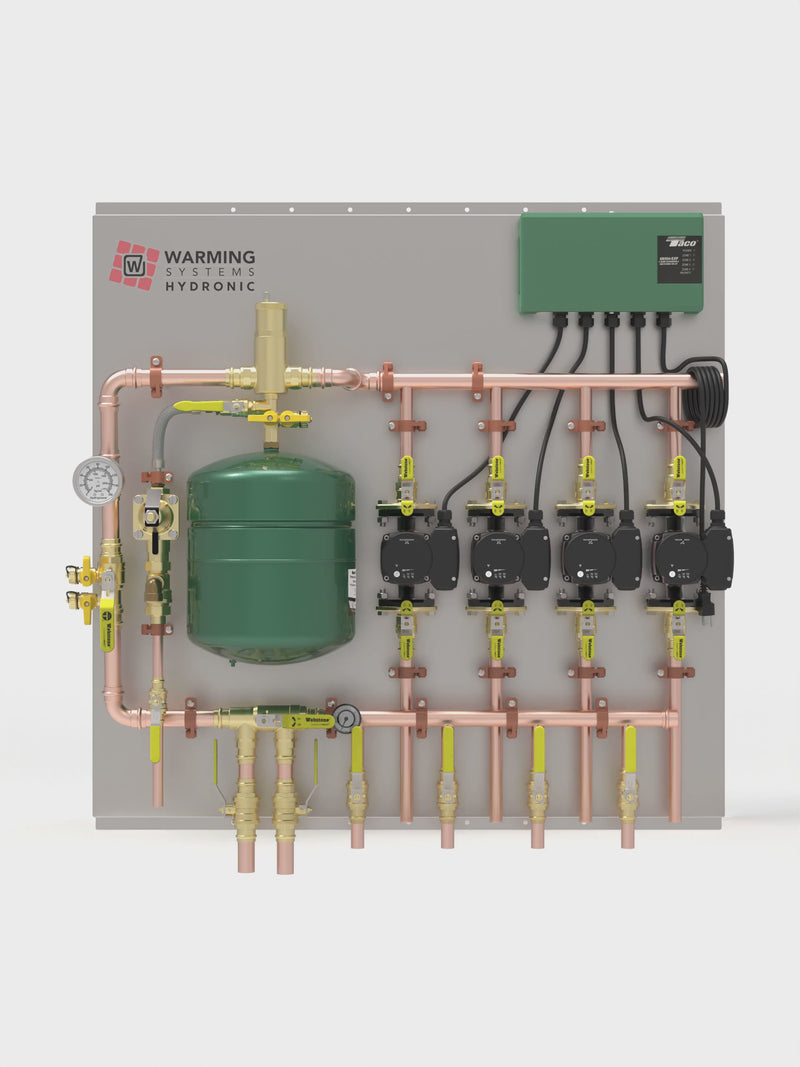

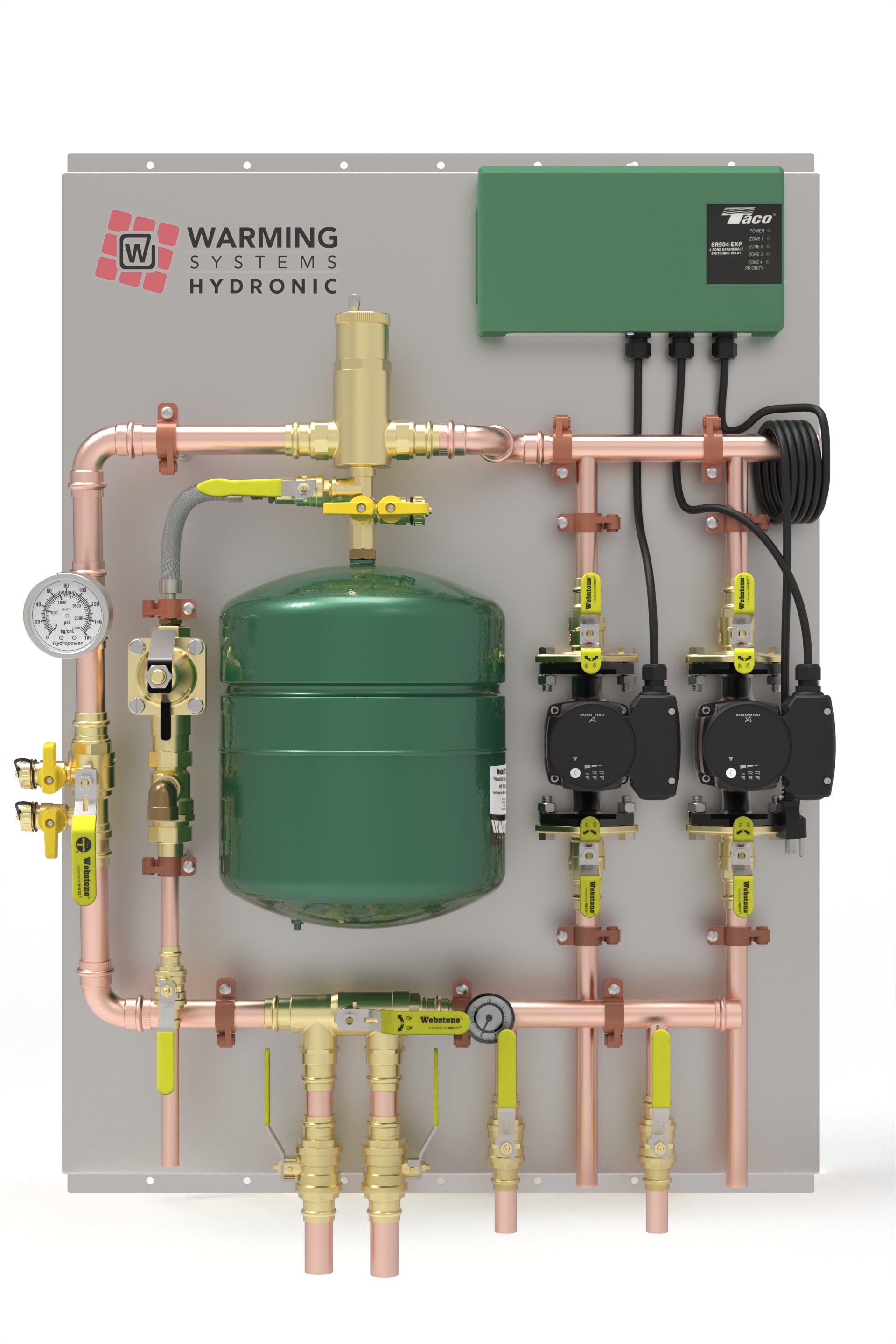

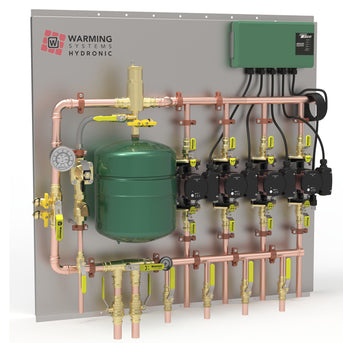

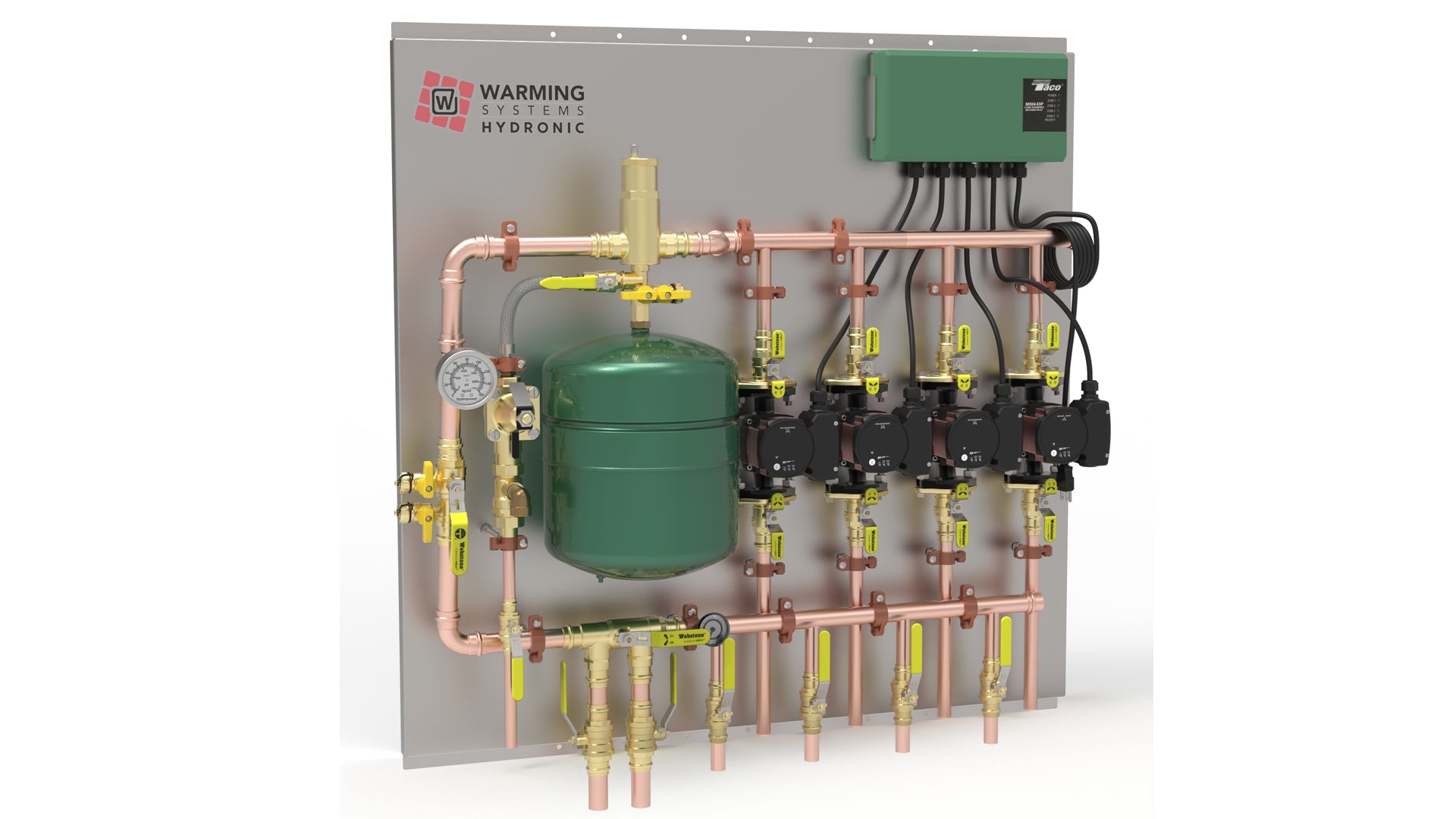

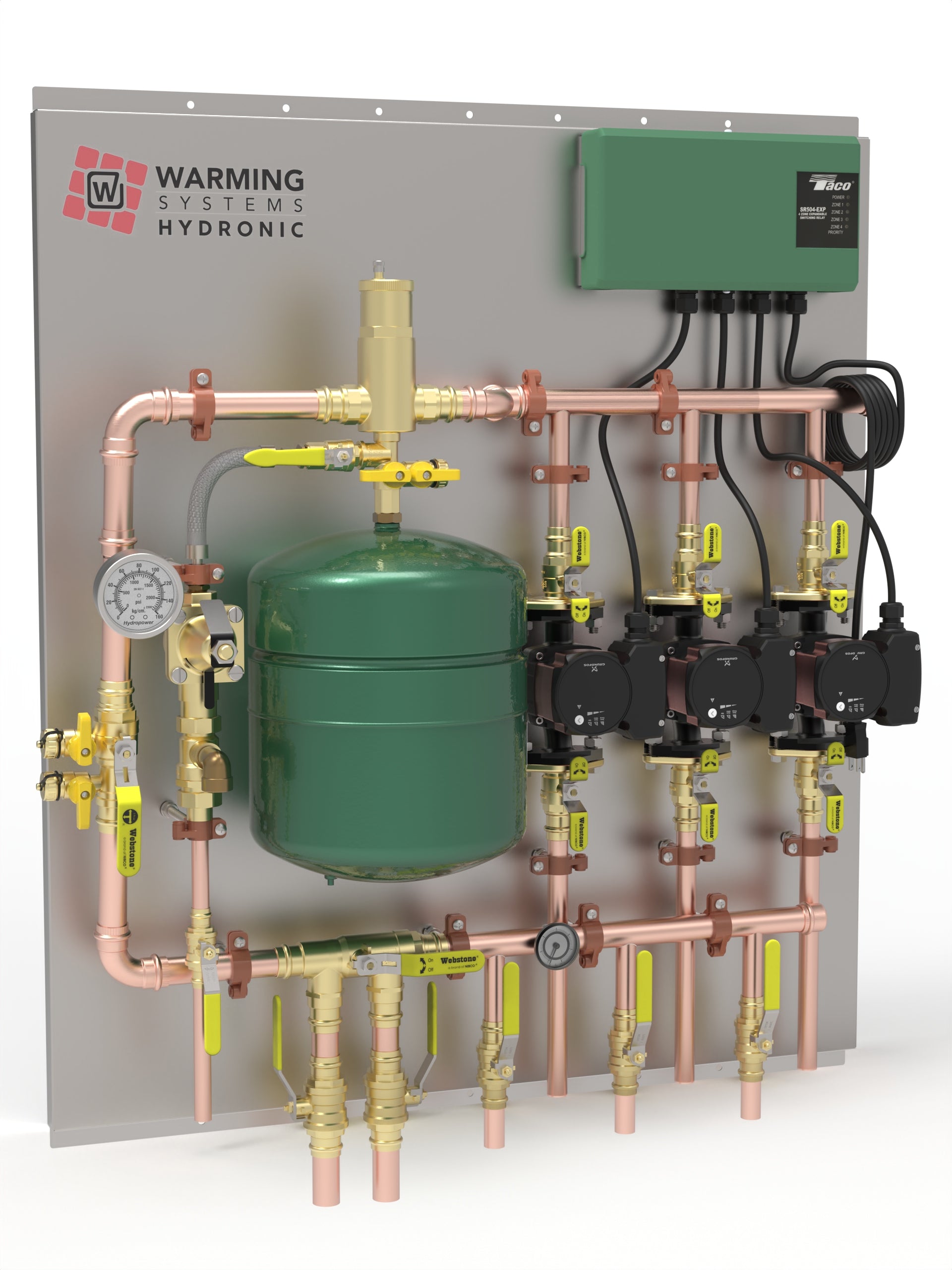

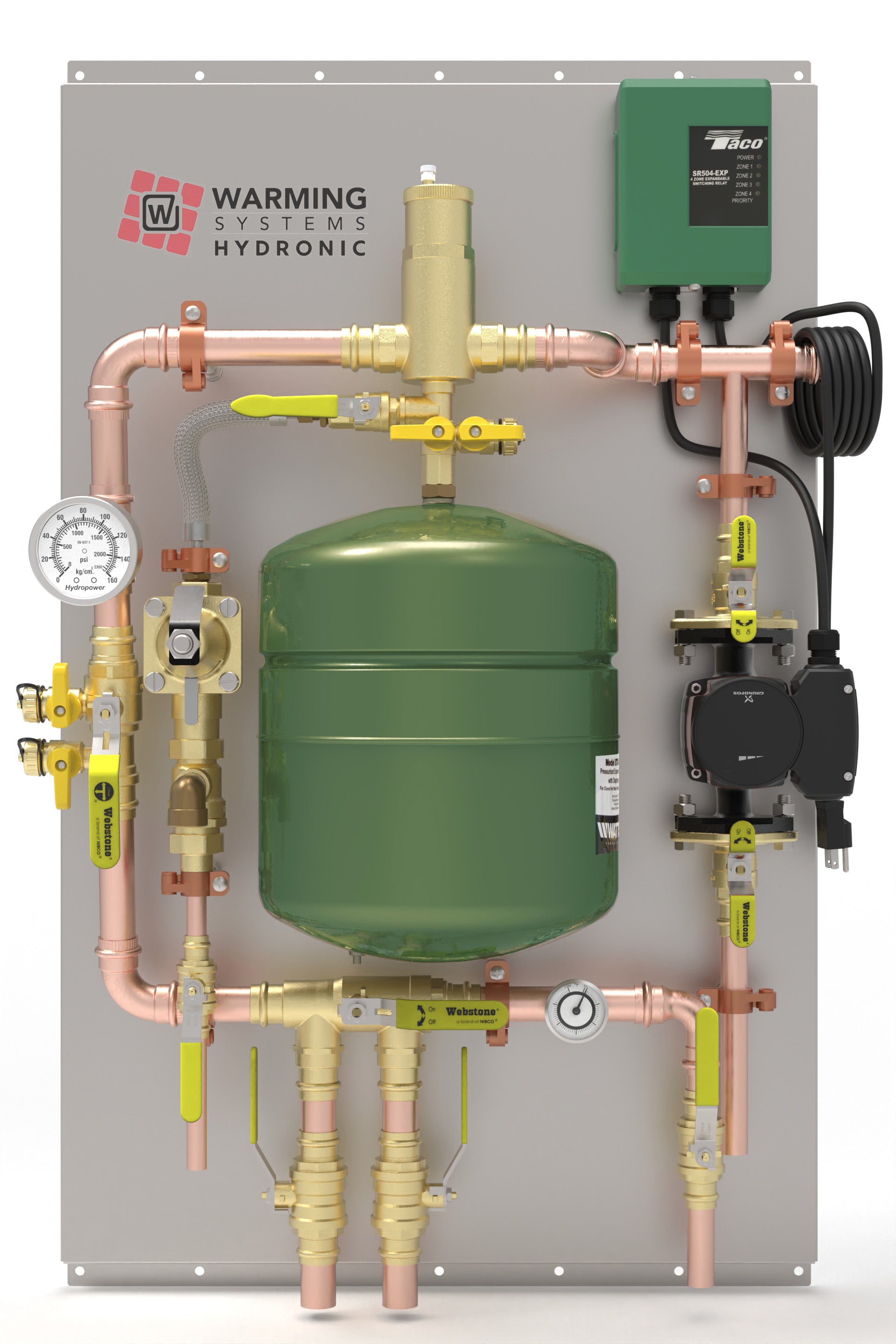

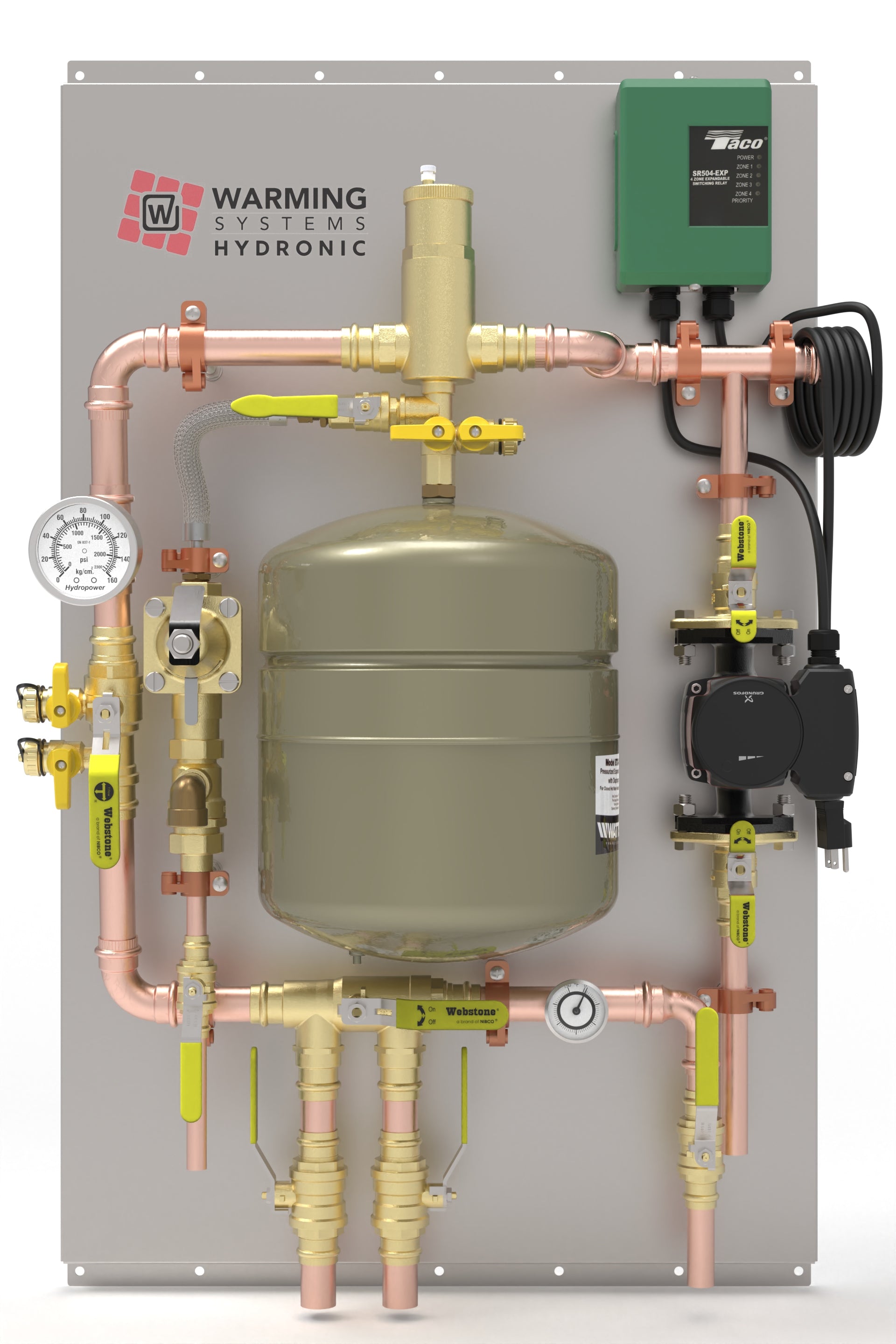

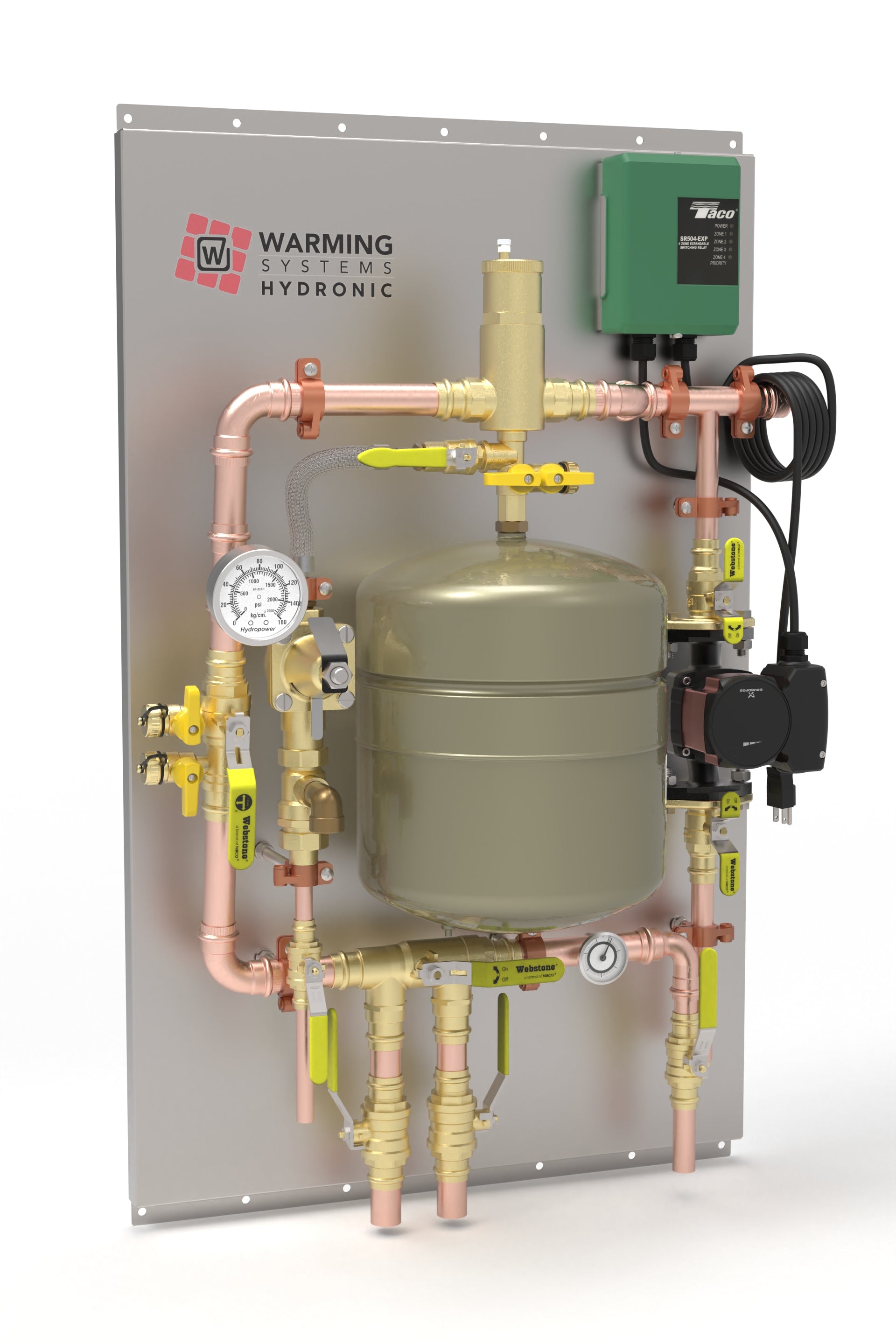

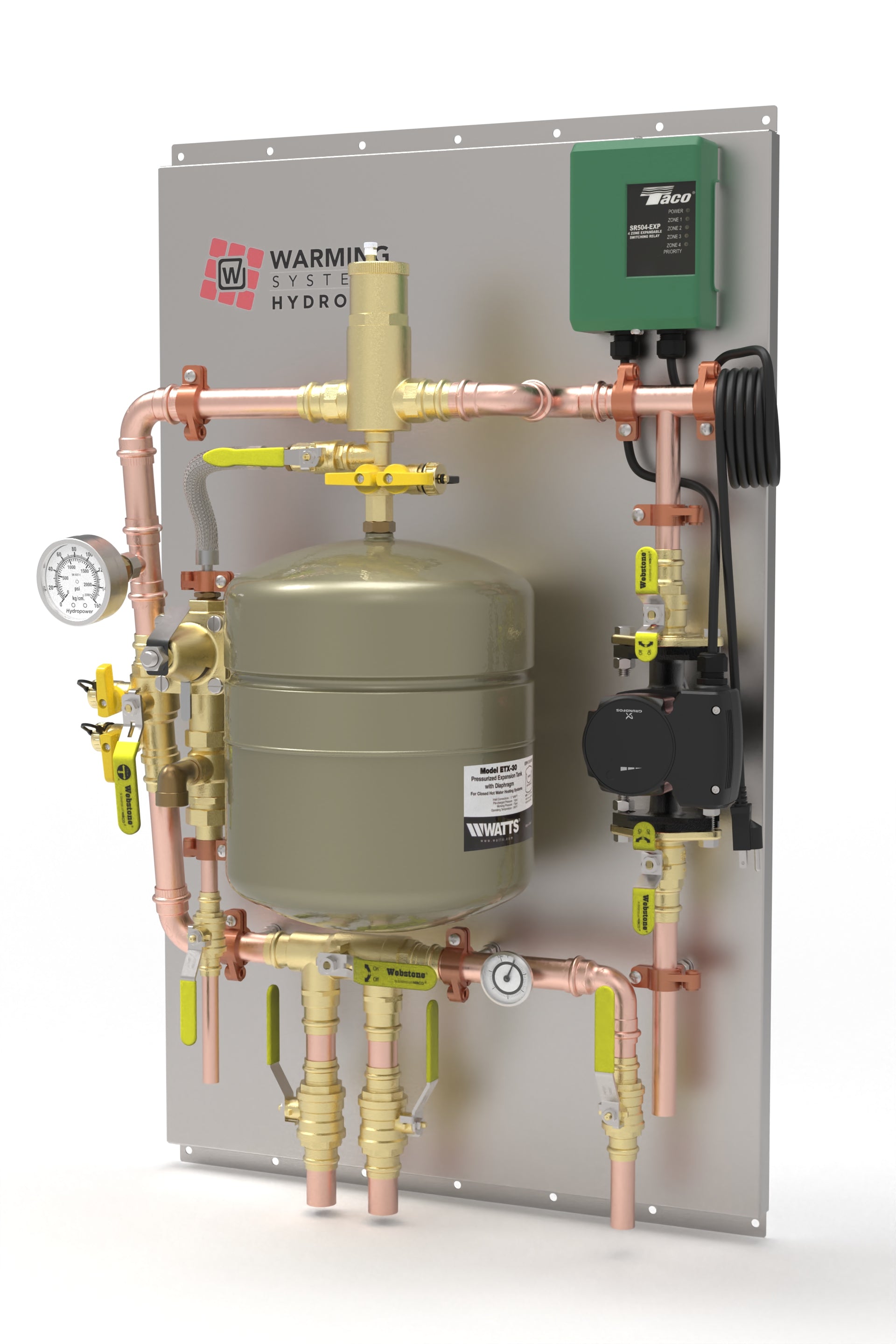

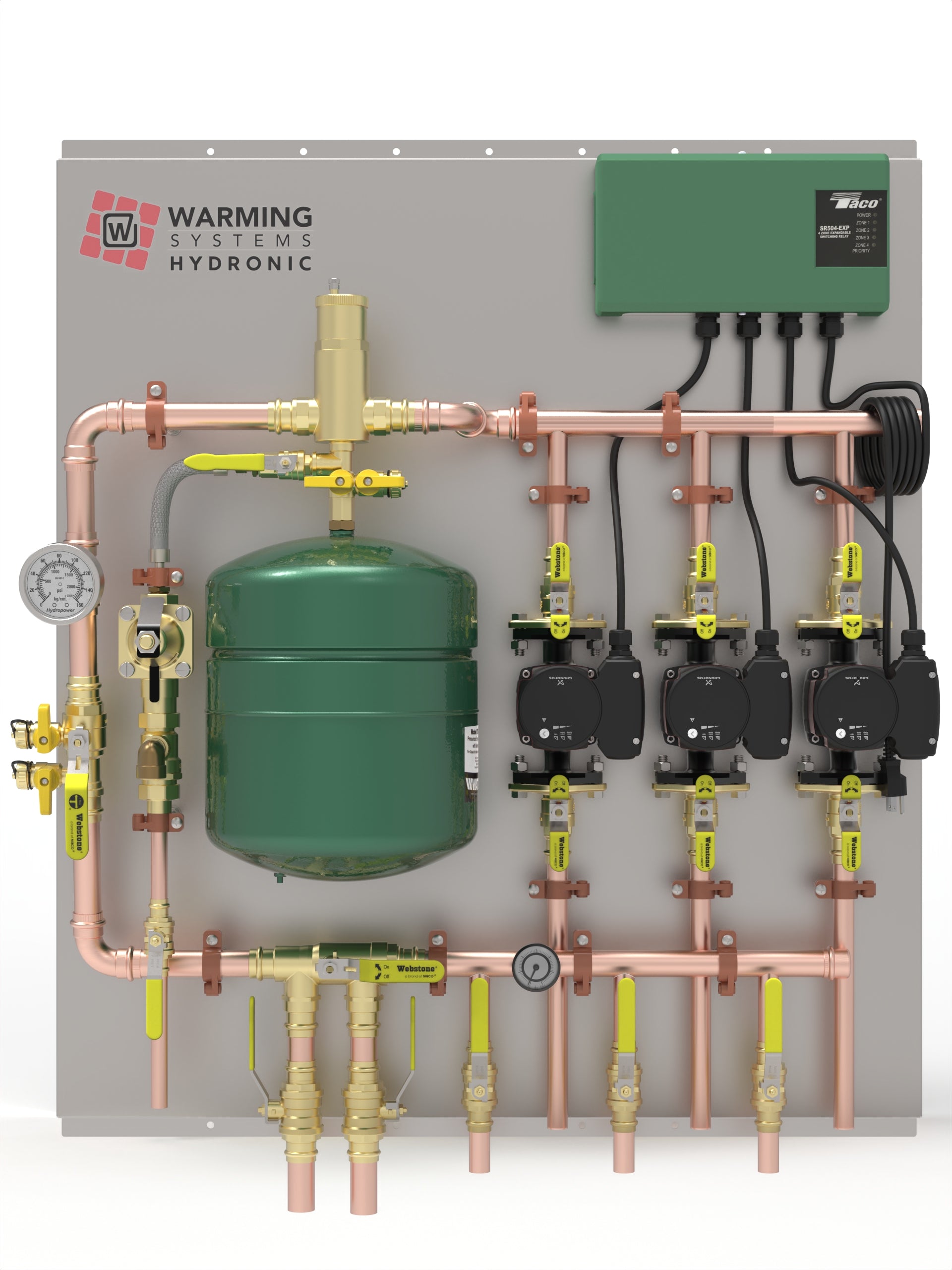

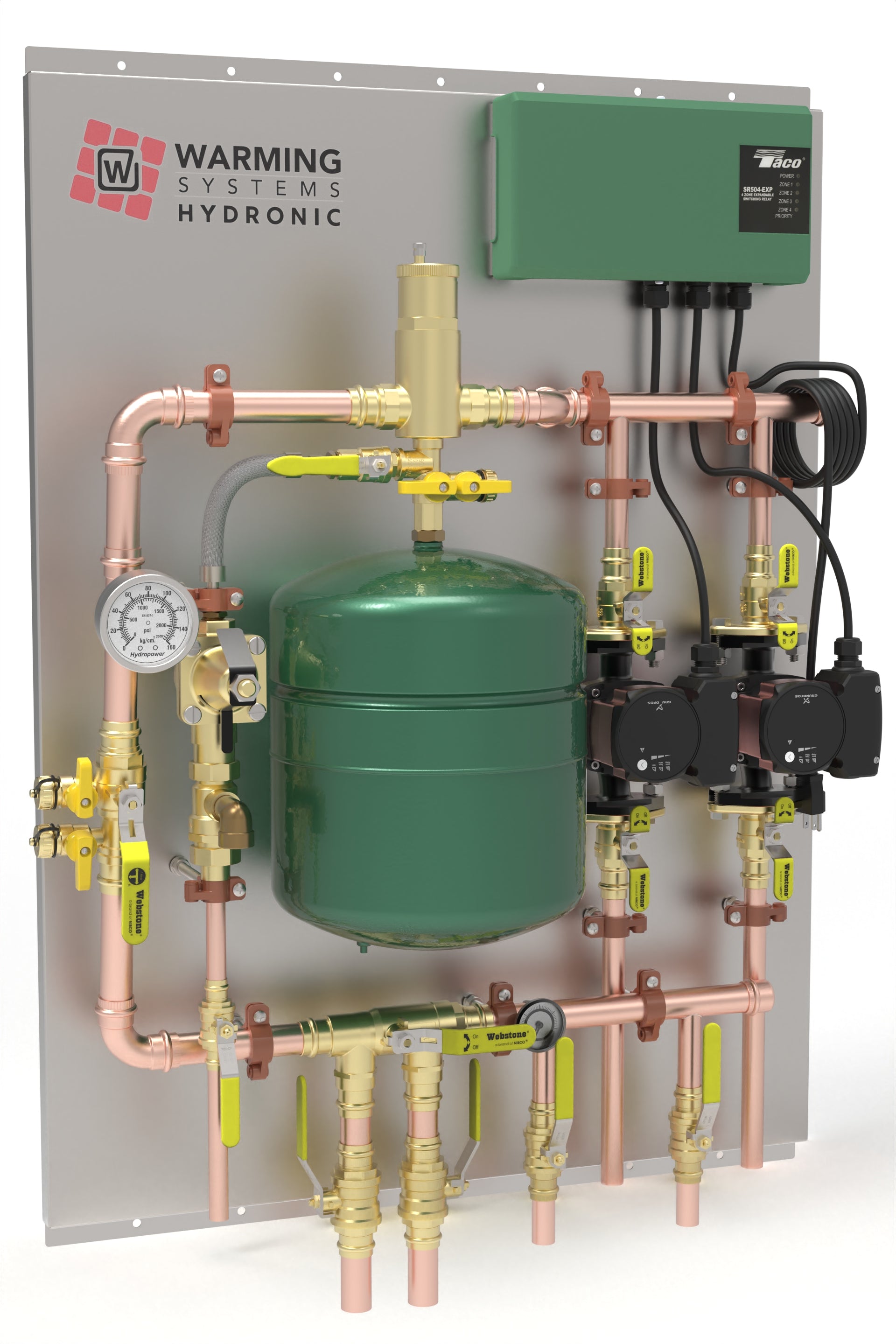

Complete Pump Zone Hydronic Heating Panel
Simplify your multi-zone hydronic heating installation with a professionally assembled pump zone panel that brings the primary circulation, control, air-management and system-service components together in one organized layout.
Each heating zone has its own dedicated circulator pump, allowing water flow to be controlled independently based on the thermostat demand for that area. This configuration provides reliable circulation, responsive zone control and strong performance for systems with different flow requirements.

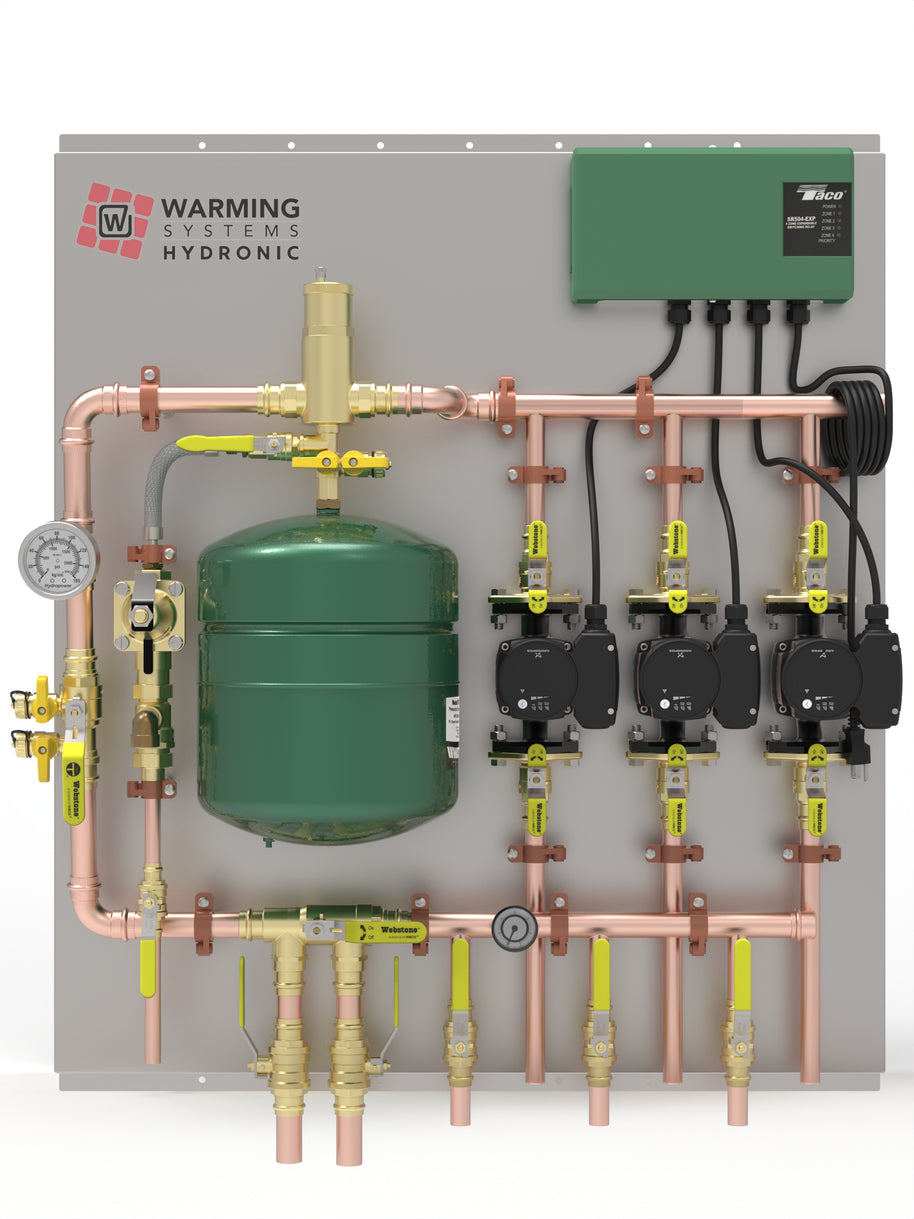

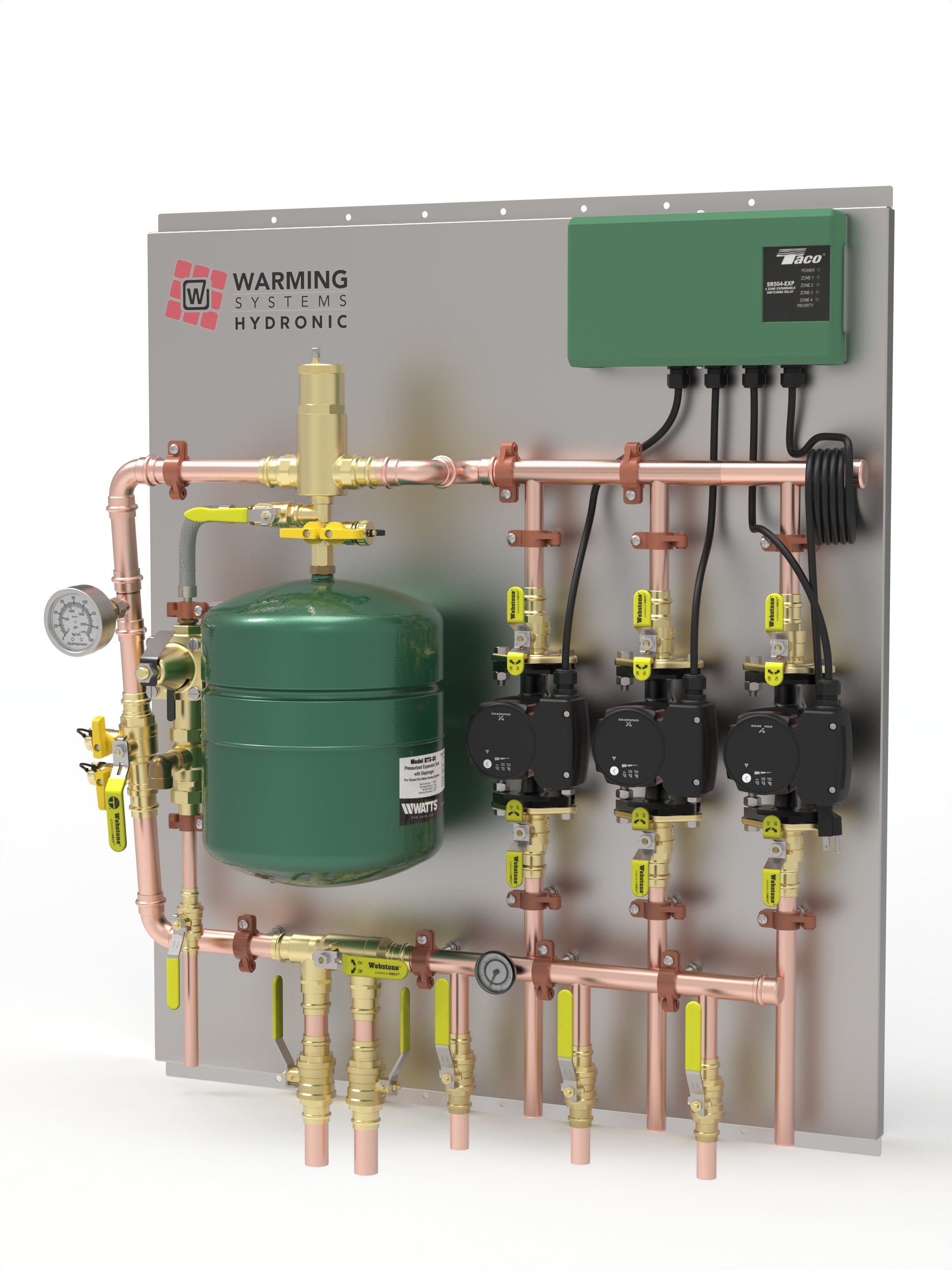

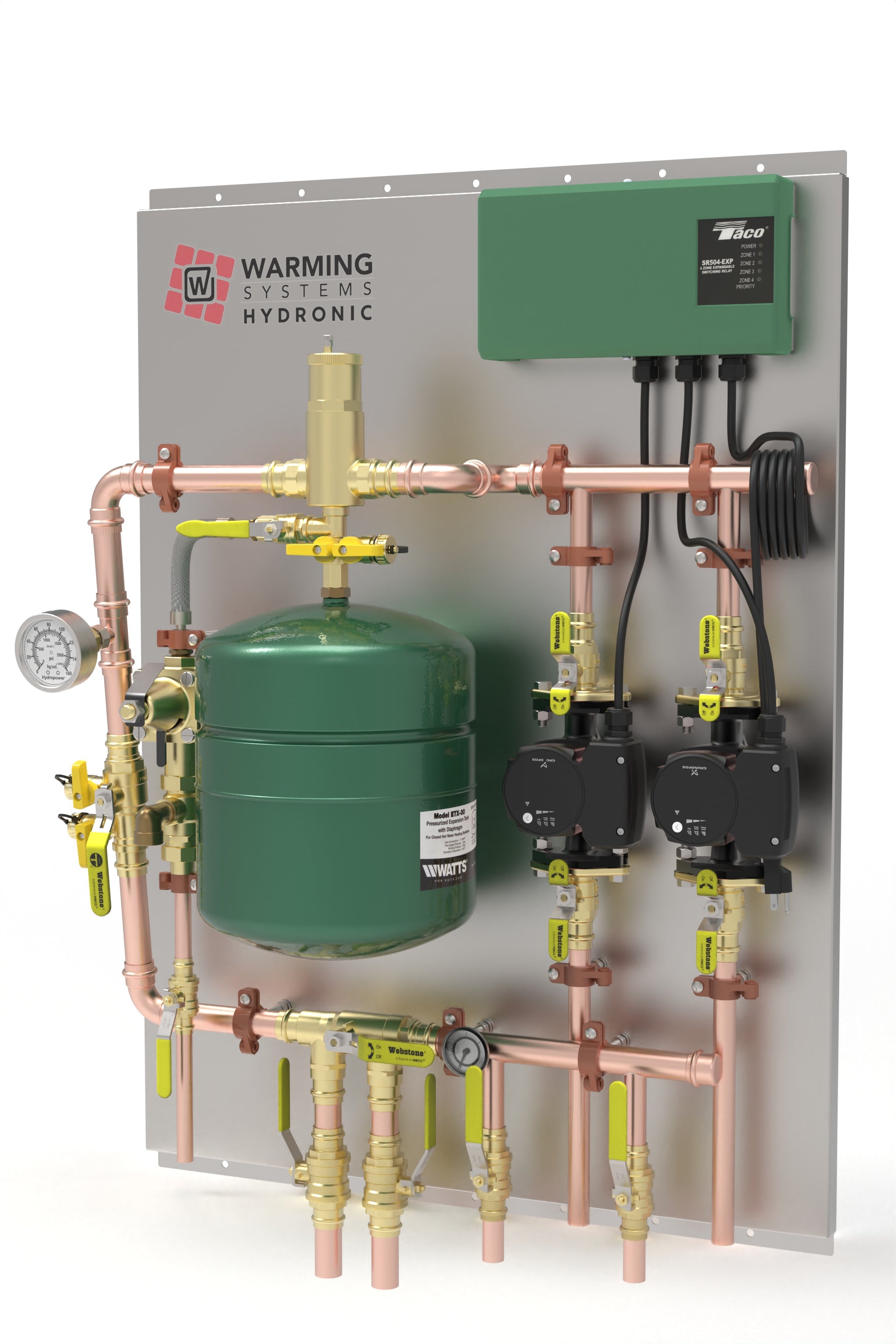

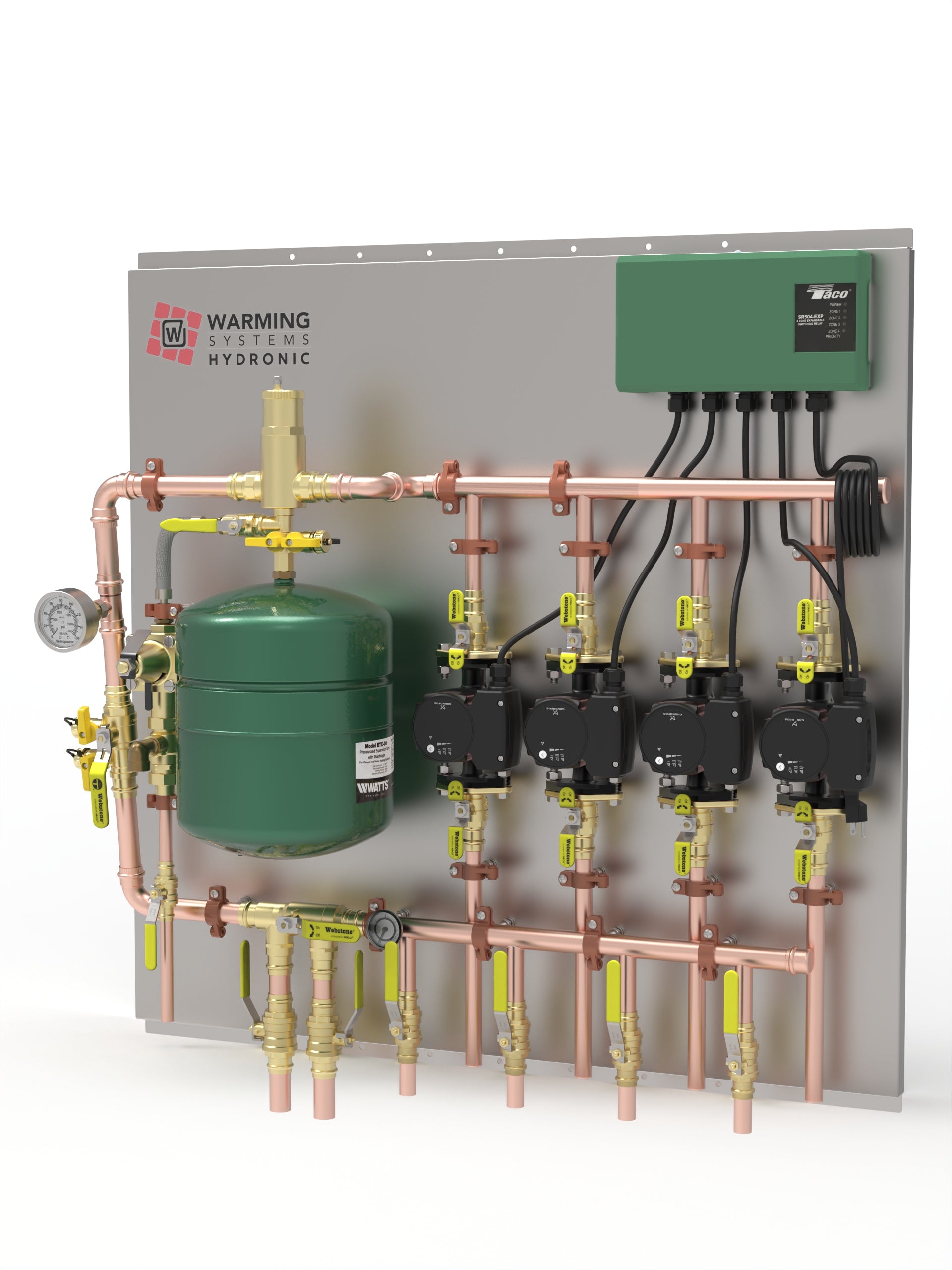

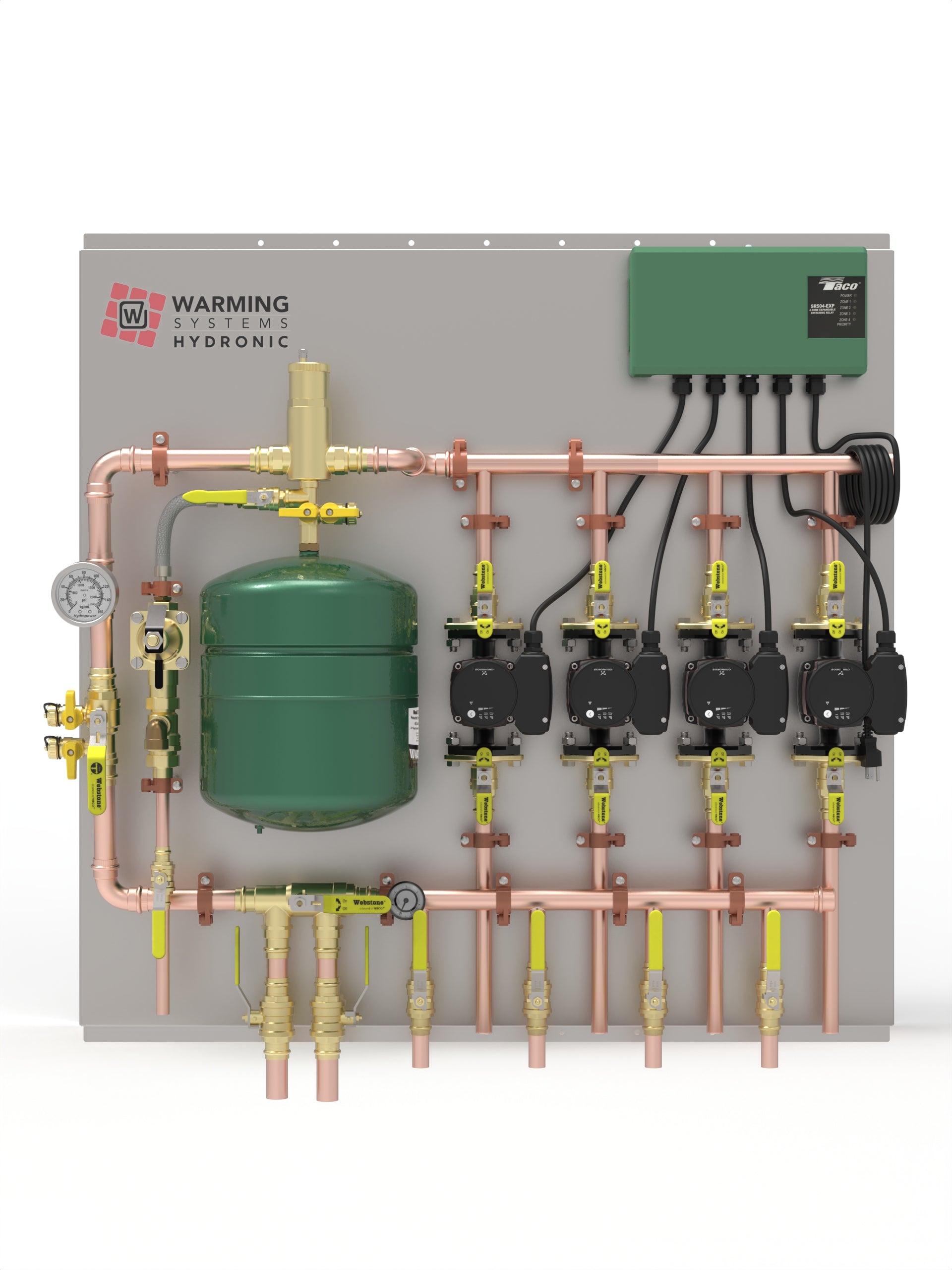

The preassembled design helps reduce on-site piping and component assembly while creating a clean, accessible mechanical installation. Choose from 1, 2, 3 or 4-zone configurations with standard-flow or high-flow circulator pumps.
1–4 ZONES
Independent Zone Control
1 PUMP PER ZONE
Dedicated Circulation
2 PUMP OPTIONS
Standard or High Flow
Pump Zone Control Panel: Each heating zone has its own dedicated circulator pump, providing independent flow control, faster response times and dependable performance for larger systems or zones with varying flow requirements. A compatible boiler or other hydronic heat source is required and sold separately.

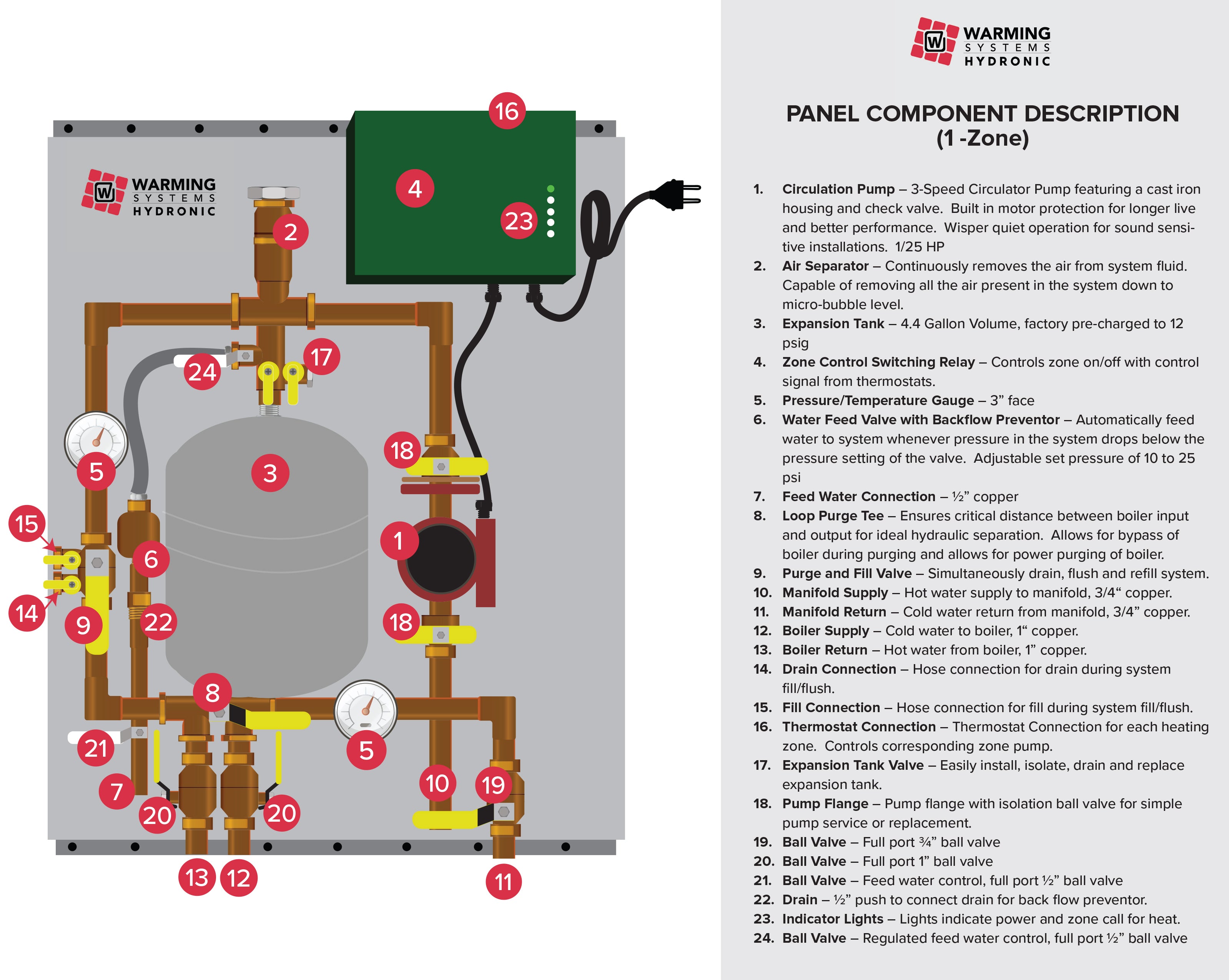

Key Features
- Professionally assembled pump zone panel for hydronic heating systems
- Available in 1, 2, 3 or 4 independently controlled zone configurations
- Dedicated three-speed circulator pump for each heating zone
- Each zone operates independently from its corresponding thermostat
- Standard-flow and high-flow circulator pump options are available
- Taco switching relay controls the circulator pumps during heat calls
- External indicator lights display power and active zone operation
- Expansion tank accommodates normal changes in system-water volume
- Air separator continuously helps remove trapped air and microbubbles
- Automatic water-feed valve and backflow preventer help maintain pressure
- Pressure and temperature gauges provide convenient system monitoring
- Integrated purge, fill and drain connections simplify system servicing
- Isolation valves allow pumps and other components to be serviced
- Compatible with properly designed water or water-glycol systems
Designed for Pump-Zoned Hydronic Heating
This panel is designed to control circulation for radiant floor heating, baseboard heating, radiators, snow-melt systems and other closed-loop hydronic heating applications.
Each heating area is connected to its own circulator pump and thermostat. When a thermostat calls for heat, the Taco switching relay activates the corresponding zone pump. Heated water is then circulated from the boiler through that zone and returned to the panel.
Additional zone pumps can operate at the same time when multiple thermostats call for heat. Because each zone has its own circulator, the system can provide independent flow for areas with different heating loads, piping layouts or distribution requirements.

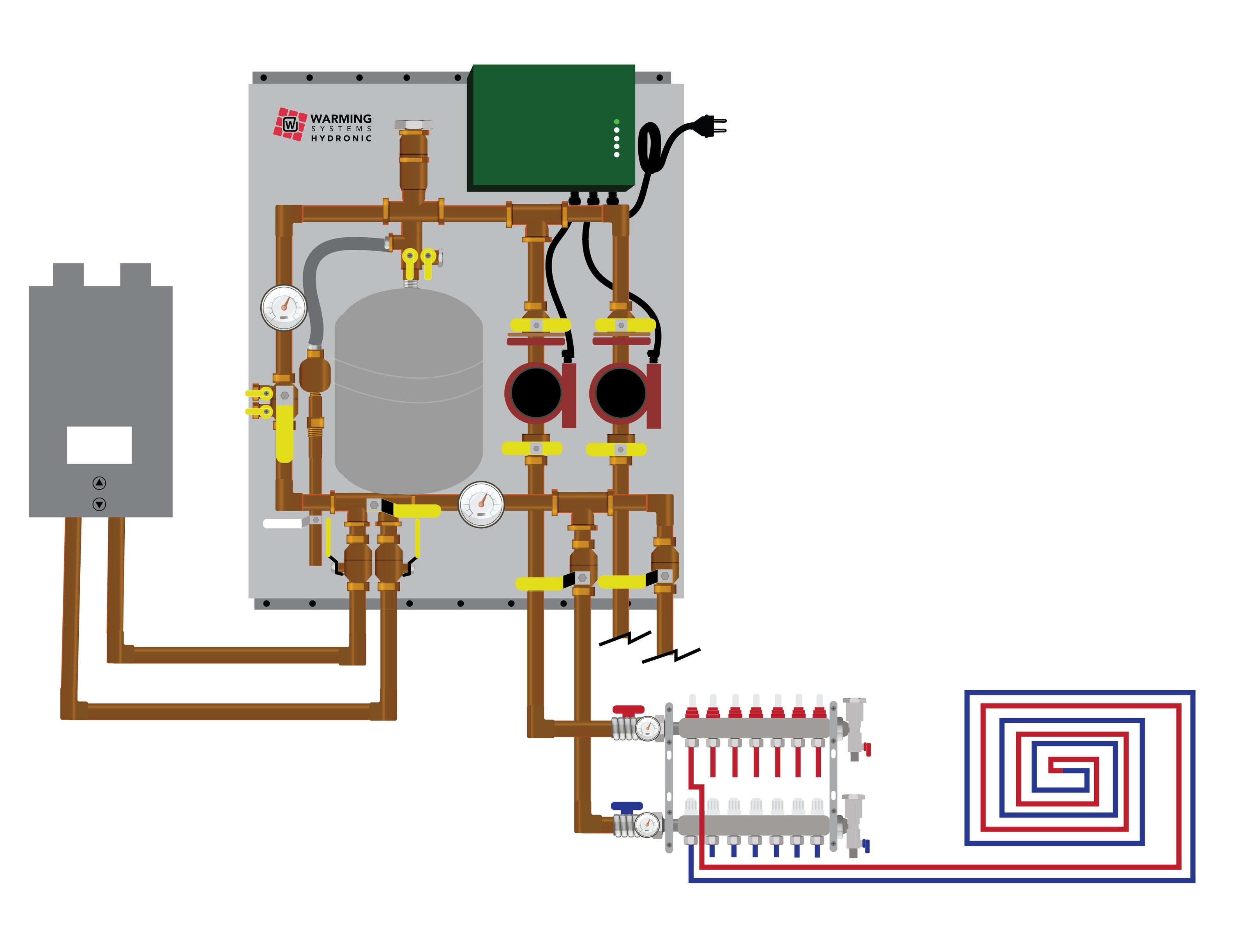

The panel connects to a separately selected boiler and supply and return manifolds. The boiler should include an internal circulator pump, or a separate boiler-loop circulator must be added as part of the completed system design.
Technical Specifications
Product Type
Preassembled pump zone hydronic panel
Applications
Radiant floor heat, baseboard, radiators and snow melt
Zone Options
1, 2, 3 or 4 zones
Zoning Method
Dedicated circulator pump for each zone
Pump Options
Standard-flow or high-flow
Standard Pump
Grundfos UPS15-58FC, three-speed
Standard Pump Rating
1/25 HP, 115V
Standard Flow Range
0–17 GPM
Standard Head Range
0–19 feet
Standard Zone Capacity
Up to 8 properly designed PEX loops per zone
High-Flow Pump
Grundfos UPS26-99FC, three-speed
High-Flow Pump Rating
1/6 HP, 115V
High-Flow Range
0–33 GPM
High-Flow Head Range
0–29 feet
High-Flow Zone Capacity
Up to 23 properly designed PEX loops per zone
Zone Controller
Taco switching relay
Controller Power
115V electrical connection
Boiler Connection
1-inch copper
Standard Zone Connection
3/4-inch copper
High-Flow Zone Connection
1-inch copper
Expansion Tank
4.4 gallons, factory precharged to 12 PSI
Air Separator
Webstone hydronic air separator
Water Feed
Automatic feed valve with backflow preventer
Feed Pressure
Adjustable from 10 to 25 PSI
Monitoring
Pressure and temperature gauges
Compatible Fluid
Water or properly designed water-glycol mixture
Maximum Temperature
Up to 180°F (82°C)
Service Connections
Fill, purge, drain and isolation connections
Heat Source
Compatible boiler or hydronic heat source required
Assembly
Professionally assembled in Spring Grove, Illinois
Choosing the Correct Pump Option
Standard-Flow Pump
The standard-flow configuration uses a Grundfos UPS15-58FC three-speed circulator for each zone. Each pump can support up to eight properly designed 1/2-inch PEX loops, with loop lengths of up to 300 feet and a design flow of approximately 1 GPM per loop.
High-Flow Pump
The high-flow configuration uses a Grundfos UPS26-99FC three-speed circulator for each zone. Each pump can support up to 23 properly designed 1/2-inch PEX loops, with loop lengths of up to 300 feet and a design flow of approximately 1 GPM per loop.
These loop quantities are general selection guidelines. Final pump selection must be based on the required system flow, piping size, pressure loss, loop lengths, manifold configuration, fluid mixture and operating temperature.
Professional System Design and Installation Recommended
Hydronic heating equipment should be selected using a professional heat loss calculation and a complete system design. Boiler capacity, supply water temperature, required flow, system pressure loss, PEX spacing, loop lengths, insulation and local climate should all be considered.
The boiler, thermostats, supply and return manifolds, distribution piping and heating loops are not included unless specifically stated in the selected product configuration.
The connected boiler should include an internal circulator pump, or a separate boiler-loop circulator must be installed. Final system piping, electrical connections, thermostat wiring, filling, purging, startup and commissioning should be completed by qualified professionals in accordance with applicable codes and equipment instructions.
Warranty and Support
Warming Systems honors the applicable original manufacturer warranties on the components included with the panel. The panel assembly and craftsmanship are backed by Warming Systems for 3 years.
Manufacturer component warranties honored
3-year panel craftsmanship warranty
Contact Warming Systems for warranty support, component warranty questions or assistance reviewing a potential claim.
