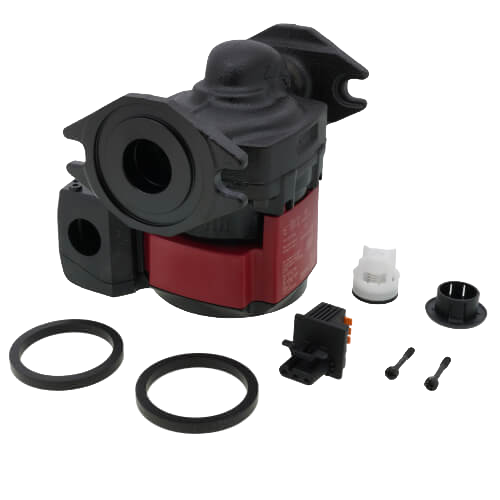

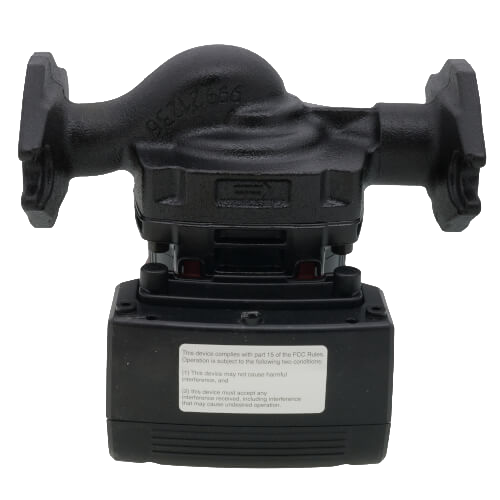

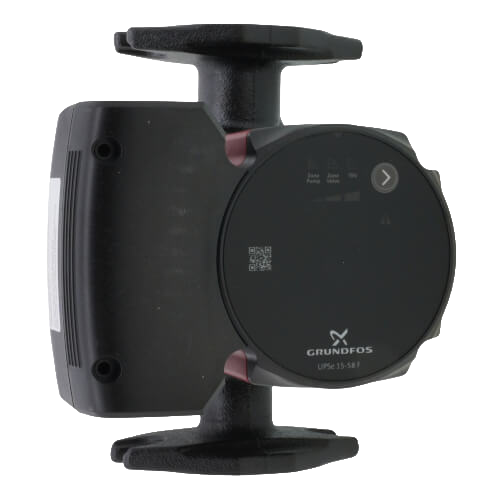

Grundfos UPSe 15-58F High-Efficiency ECM Circulator Pump – 115V
Grundfos UPSe 15-58F High-Efficiency ECM Circulator Pump – 115V
Grundfos UPSe 15-58F High-Efficiency ECM Circulator Pump – 115V

Grundfos UPSe 15-58F High-Efficiency ECM Circulator Pump – 115V

20 In stock, ready to ship

$198.00
$198.00
The field must not be blank

Made in the USA

Expert Support

Quality Components

The Grundfos UPSe 15-58F High-Efficiency ECM Circulator Pump provides efficient and reliable water circulation for residential hydronic heating systems. Designed with an electronically commutated motor (ECM), the UPSe offers flexible operating modes while reducing energy consumption compared with traditional fixed-speed circulators.

Its compact design and adjustable performance make it well suited for radiant floor heating, boiler systems, hydronic zoning, baseboard heating and other closed-loop hot water heating applications.

Features:

  • High-efficiency ECM motor for reduced energy consumption
  • Multiple operating modes for flexible hydronic system design
  • Constant pressure, proportional pressure and constant curve settings
  • Maximum flow rate up to 13.6 GPM
  • Maximum head up to 19 ft.
  • Dry-run protection helps protect the circulator when water is not detected
  • Self-venting operation helps reduce unwanted system noise
  • Built-in warning and alarm indicators assist with troubleshooting
  • Robust startup function helps free a blocked rotor
  • Compact conduit box for easier installation in tight spaces
  • Toolless electrical connector simplifies wiring

Specifications:

Brand
Grundfos
Model
UPSe 15-58F
Part Number
92603106
Pump Type
High-Efficiency ECM Circulator
Voltage
115V
Maximum Flow
13.6 GPM
Maximum Head
19 ft.
Maximum Pressure
175 PSI
Liquid Temperature
36°F – 230°F
Power Range
3 – 38W
Pump Body
Cast Iron
Connection
Flanged
Need help selecting a circulator?
Our team can help determine whether the UPSe 15-58F is appropriate for your radiant floor heating or hydronic system.
