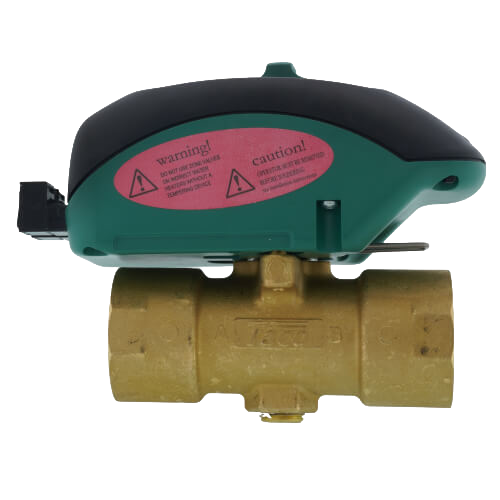

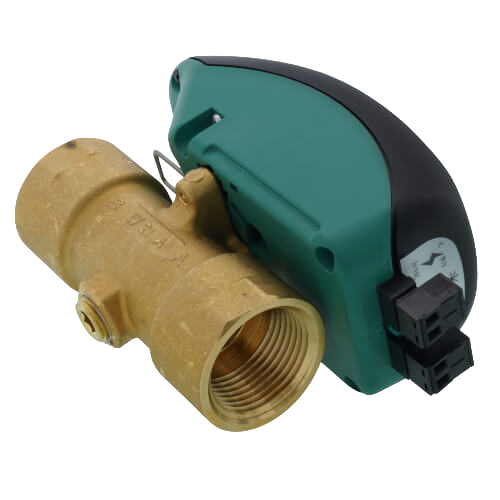

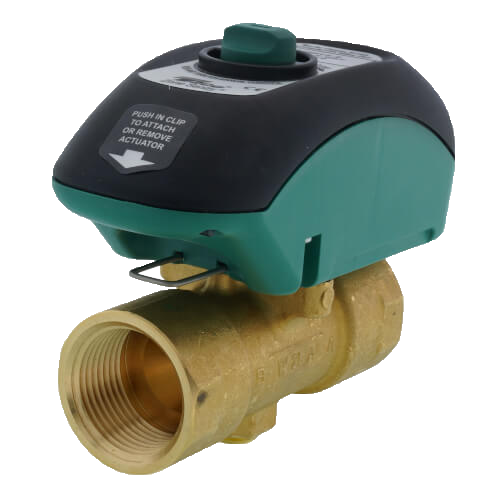

Taco 1" Zone Sentry Valve Normally Closed (Threaded)
Taco 1
Taco 1
  • Sold out

Taco 1" Zone Sentry Valve Normally Closed (Threaded)

$0.00
$0.00
The field must not be blank

Product Highlights

Body Pattern
2-Way
Connection Type
Threaded Connection
Flow Capacity
8.9 Cv
Size
1"
Voltage
24 VAC
Position
Normally Closed

Description

Taco Zone Sentry Zone Valves provide on-off, normally open or normally closed control in both open and closed hot or chilled water systems. The valves can be used in a wide variety of heating and cooling applications and are primarily designed for use with fan coils, radiators, convectors, air handlers, heat pumps, and radiant heating systems.

The Zone Sentry is one of Taco's most technologically advanced zone valves while remaining simple to install and operate. The valve can be installed in any direction and in any orientation. The operator can also be mounted to the valve body in either direction, making it ideal for tight baseboard and mechanical-room installations.

Snap-in quick-connect terminals on the back of the valve provide a simple, secure, and fast wiring connection. A green LED indicator shows the valve's operating status and thermostat demand.

Manual Override

During a power outage, the manual override button located on top of the valve allows the ball to be rotated up to 90 degrees. A marked slot indicates the current position of the valve.

Specifications

Application
Zoning
Size
1"
Voltage
24 VAC
Connection Type
Threaded
Hertz
60 Hz
Amperage
0.48 A
Flow Capacity
8.9 Cv
Maximum Operating Pressure
300 psi
Body Pattern
2-Way
Fluid Temperature Range
20°F to 220°F
Position
Normally Closed
End Switch
Yes
